Reliable Today, Ready for Tomorrow
- Make measurements you can trust with a guaranteed accuracy of *0.03%
- 10MS/s, 1MHz power bandwidth, 18 bit resolution enabled by Yokogawa isoPRO™ fiber optic isolation technology
- Simultaneously analyze 7 phases with one chassis, producing over 1000 power parameters real-time
- Precision current measurement guaranteed by innovative symmetric coaxial shunt design *basic power accuracy
- Stream raw waveform data up to 22 items at a rate of up to 2 MS/s for detailed waveform analysis
| Product Price | ₵14,000.00 | ||
Click to add this item to cart. | |||
Product Description
Experience unmatched precision with the Yokogawa WT5000—the world’s leading precision power analyzer. Engineered for the most demanding electrical and mechanical power and efficiency testing, the WT5000 offers multi-channel measurements, advanced harmonic analysis, and intuitive operation through its user-friendly software and responsive touchscreen. With seven swappable input elements, four motor channels, and approval for SPEC Power® and IEC standards, the WT5000 is the ultimate tool for high-accuracy power measurements.
Innovate with Precision, Flexibility and Confidence

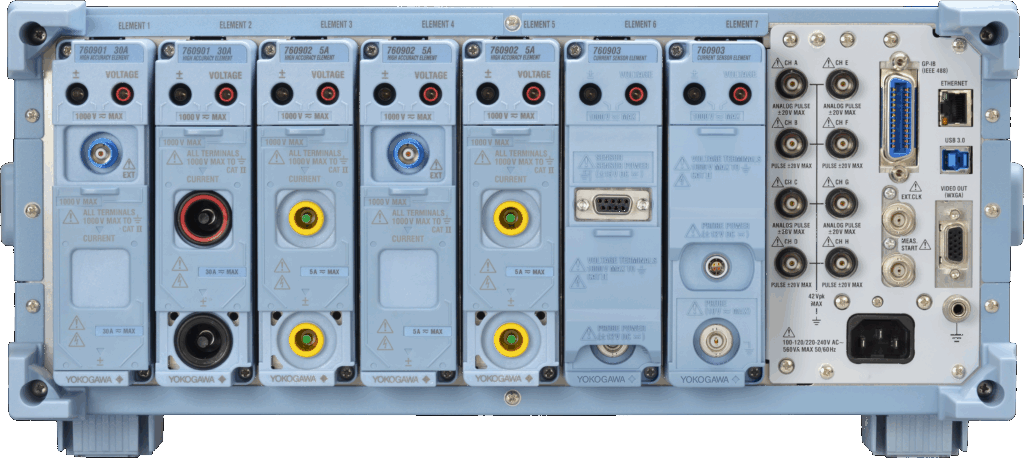

- Modular architecture with 7 user swappable and reconfigurable input elements
- High-accuracy element, built-in DC power supply, enables both easy wiring and reliable high-precision, large-current measurements
- Up to 10ms data update, up to 50ms data update when using data streaming
- Follows frequency fluctuations in input signals by auto update mode
- Synchronize multiple chassis for large multi-phase systems
- For motors and generators up to 4 speed and torque inputs** can be used measuring total system efficiency
- Isolate and measure harmonic losses with configurable advanced filtering for simultaneous wideband and harmonic power analysis
**can be configured as auxiliary inputs - Stream raw waveform data up to 22 items at a rate of up to 2 MS/s for detailed waveform analysis
Precision Made Easy
- Highly responsive 10.1 inch electrostatic capacitive touch screen
- Intuitive and easy menus to connect, configure, measure and record
- Modular interconnect design putting safety first
