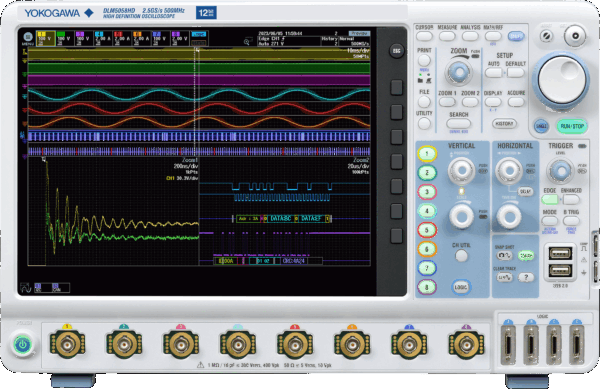

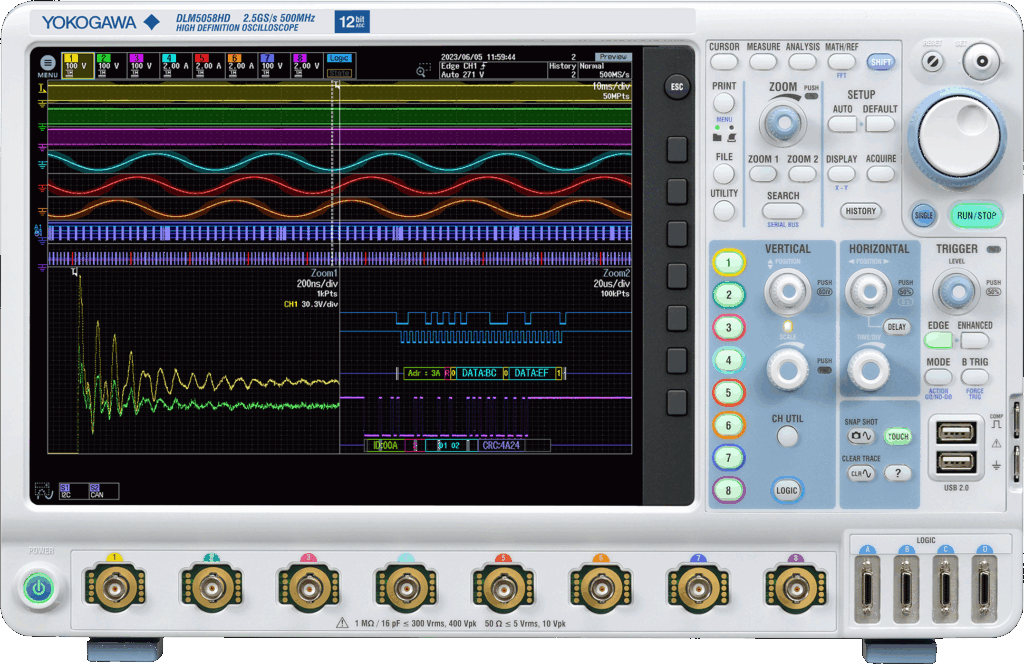

Setting a New Standard for High Definition
- 4 or 8 analog channels, 16-bit logic + optional additional 16-bit logic
- Bandwidth: 350 or 500 MHz
- Sample Rate: up to 2.5 GS/s
- Vertical resolution: 12 bit
- High resolution mode: up to 16 bit
- Measurement memory: up to 1 GigaPoints
- History waveforms: up to 200,000 triggers
- Simultaneous Multi-Channel Measurements: Up to 32 bit logic + 8 channels

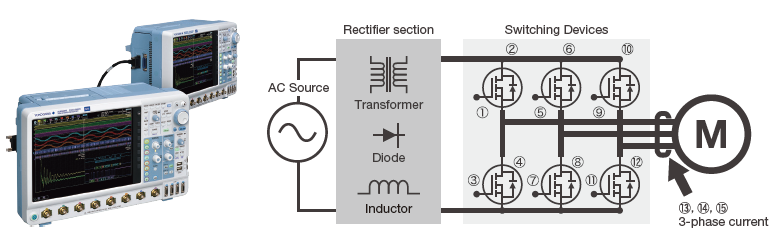

- Up to 16 channels with two connected DLM5000HDs via DLMsync
- IEEE1588 Synchronous Support
- Highly-Responsive, Intuitive 12.1in Touchscreen
- with Traditional Oscilloscope Control Panel
- Superior Noise Immunity
- Logic and Serial Bus Analysis
- Additional Math Channels
- Extensive Voltage Ranges
- Compact, Light, Portable
Key Specifications
12 to 16-Bit High Resolution Compared to traditional 8-bit oscilloscopes, the DLM5000HD measures 12-bit vertical resolution all the time. With its high definition, resolution improves up to 16-bits, providing 16x more detail than existing high-definition oscilloscopes. Its high-resolution mode enables detailed measurement of events such as ringing and overshoot with impressive accuracy.
| Product Price | ₵12,500.00 | ||
Click to add this item to cart. | |||
Product Description
Precision in Every Detail
The DLM5000HD Series High-Definition Oscilloscope is the latest addition to the Yokogawa Test&Measurement oscilloscope line-up that takes you beyond eight channels.
Adaptability is key in the development of high-performance and intelligent power semiconductor technologies and mechatronics in modern electric vehicles, motor controls, and energy efficient electronic designs. With up to 16 bits high resolution, best-in-class startup speed, the ability to support measurements up to 16 channels, high noise immunity for harsh environments, and more, the four-to-eight channel DLM5000HD Series enables easy touch navigation through a wealth of analysis features.
Product Features
| DLM5000/DLM5000HD Comparison | 12 bit (High-Resolution 16 bit) 20 |
| Memory Size | < 1 G point 20 |
| History Waveforms | < 200,000 10 |
